Answer
Mar 31, 2026 - 09:59 AM

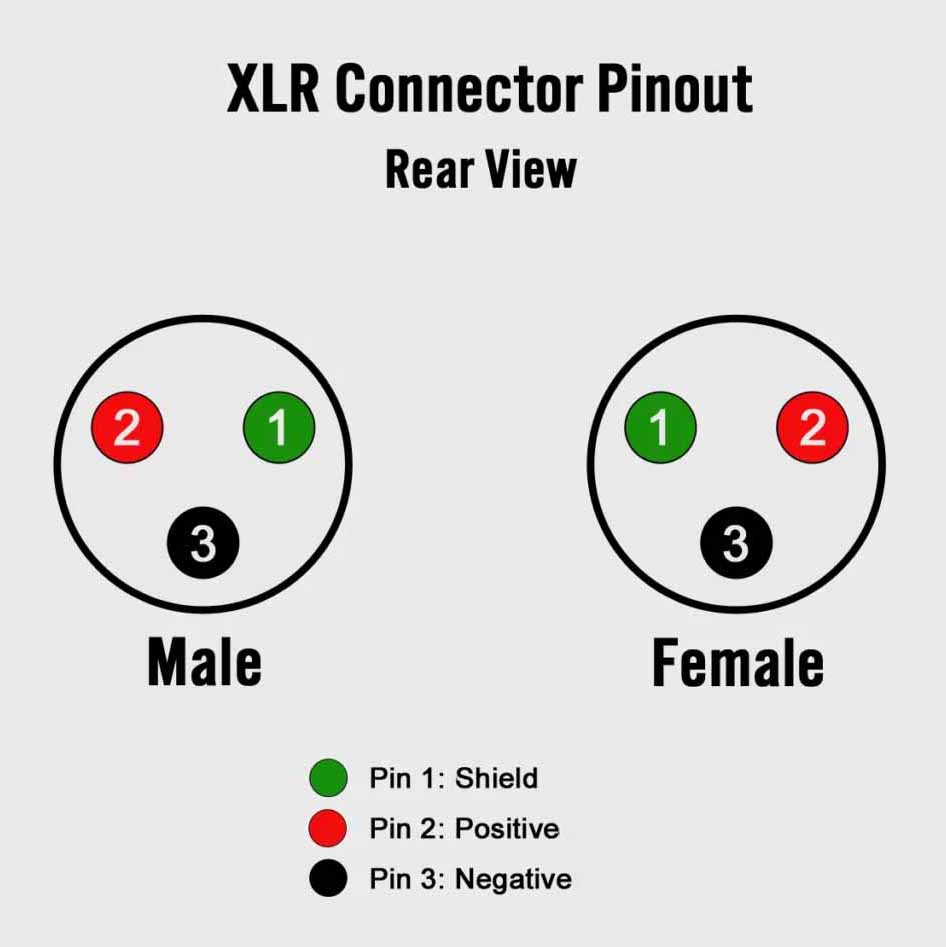

Here is an image to assist you in identifying which terminal is what on XLR 3-pin plug. Note that this is the back view where the wires are connected. If you are looking at the terminals, simply mirror the circuit locations in the diagram. Also remember that the Male/Female refers to the pins, not the connector housing.
